ENVO Flex Trike — Fat Tire Electric Adult Trike (Foldable, Differential RWD)

Stable. Compact. Go-Everywhere Cargo Trike.

Engineered in Canada, the ENVO Flex Trike is a light, foldable, step-thru electric trike built for stability, hauling, and everyday comfort. A rear-wheel-drive differential powers both rear wheels for confident traction, while 20" × 3" fat tires smooth out rough paths. Add the optional second battery for up to 137 miles of real-world range.

Available colors: Black, Orange

---

⚙️ Key Specs (U.S. units)

• Class: 2 (street-legal)

• Top Speed: 20 mph (32 km/h)

• Motor: 500 W geared rear hub (up to 1000 W off-road setting)

• Torque: ~59 lb-ft (80 Nm)

• Range (single battery): Up to 62 miles (low PAS) • ~31 miles (high PAS)

• Range (dual battery): Up to ~137 miles (220 km)

• Battery: Primary 48V 15Ah (UL-certified); optional 48V 17.5Ah range extender (UL-certified)

• Battery total (dual): ~1560 Wh

• Weight: ~79 lb (36 kg)

• Max Payload: 400 lb (rider + cargo)

• Tires: 20" × 3.0" off-road style fat tires

• Brakes: Tektro hydraulic discs, 180 mm rotors, motor cut-off

• Drivetrain: 7-speed, 42T chainring, 11–32T freewheel

• Frame: 6061 aluminum, foldable, unisex step-thru

• Certification: UL 2849 e-bike system

---

🚴 Why You’ll Love It

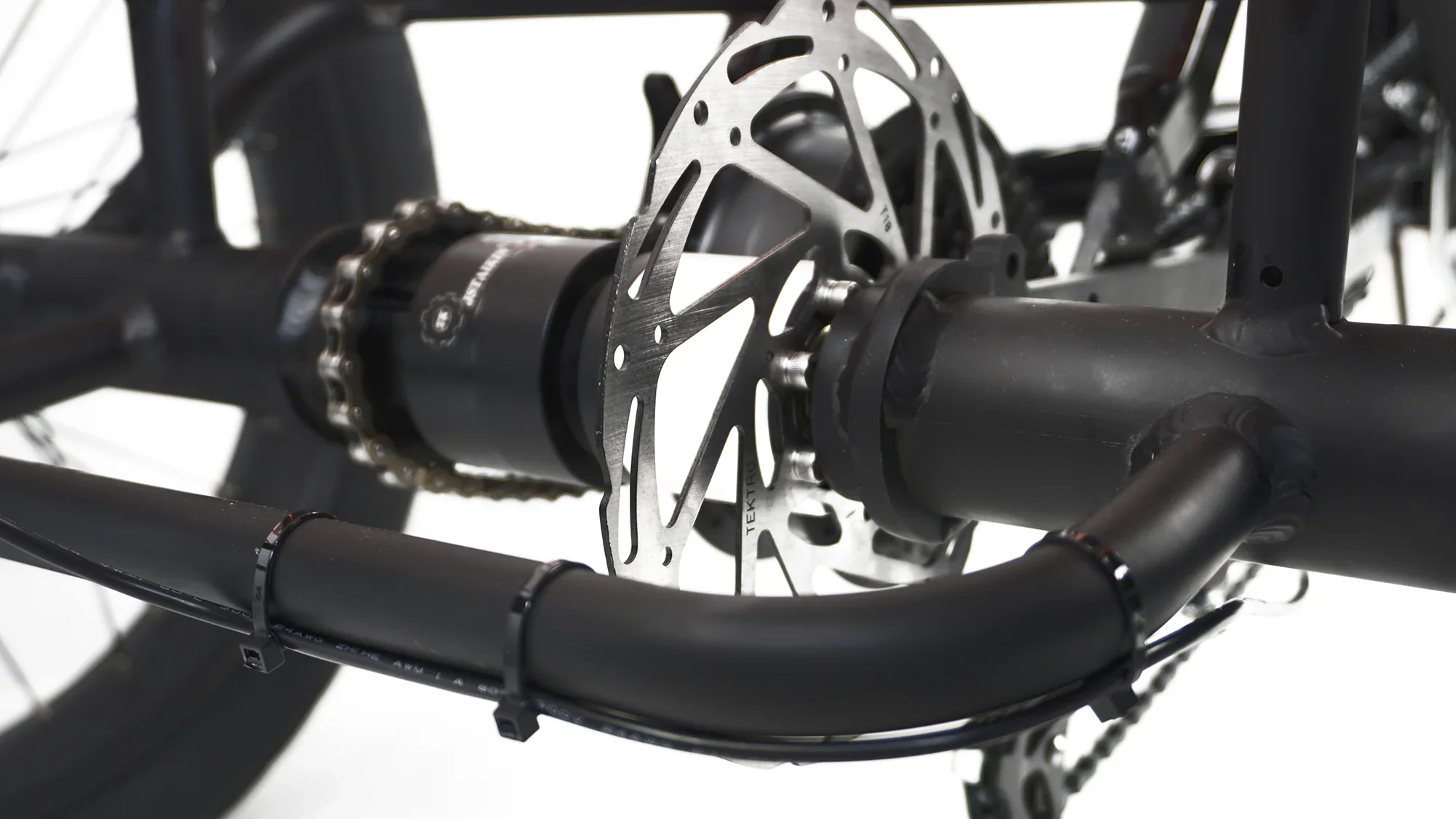

Rear-Wheel Drive with Differential

Power is delivered to both rear wheels for better traction, tighter low-speed control, and safer turning than front-wheel trikes.

Super-Long Range (Dual Battery Option)

Go farther with a second UL-certified 48V 17.5Ah battery for up to ~137 miles per charge (riding at low PAS).

Light, Foldable, Step-Thru

Easy on/off, easy storage. The hydro-formed aluminum frame folds for transport and fits riders from about 4'11"–6'5".

Confident Stopping Power

Tektro hydraulic disc brakes with motor cut-off stop all wheels for stable, predictable braking.

Smooth & Comfortable

20" × 3" fat tires add cushion and grip; an 80 mm suspension fork tames bumps on pavement or path.

Smart Assist & Bluetooth

Torque-emulating PAS with 5 levels, on-demand thumb throttle, and a color LCD with Bluetooth for diagnostics and app features.

Safety First

System is UL 2849 certified; batteries use premium LG/Panasonic cells with BMS protection for longevity and safe charging.

---

🧰 Cargo-Ready Details

• Rear Basket (included):

  • Rated to 150 lb

  • Inner dimensions: 17.5" × 14.4" × 8.1" (44.5 × 36.5 × 20.5 cm)

• Front Rack (included) for extra carry options

• Compatible with popular third-party carriers and bags

---

🔦 Components & Features

• Lighting: High-efficiency LED headlight (bar-control); taillight with brake-light function

• Saddle: Wide, ergonomic comfort saddle for upright cruising

• Fork: Adjustable preload, 80 mm travel (lockable)

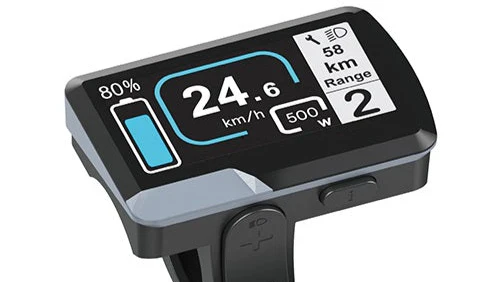

• Controls: Color LCD (speed, odometer, PAS, Bluetooth), throttle, walk/assist

• Water-Resistant Harness: For all-weather reliability

---

📦 What’s Included (In the Box)

• ENVO Flex Trike (foldable step-thru frame)

• 48V 15Ah UL-certified battery (primary)

• Smart charger (48V)

• Color LCD display with Bluetooth

• Rear basket (150 lb rated) & front rack

• Front & rear fenders

• Integrated LED headlight and taillight (with brake function)

• Pedals, kickstand, reflectors

• Assembly tools & User Manual (EN)

Optional: 48V 17.5Ah UL-certified second battery (range extender)

---

🧩 Technical Specifications

• System: Class 2 • 20 mph top speed • PAS (5) + thumb throttle

• Motor: Rear geared hub, 500 W nominal (up to 1000 W in off-road setting), 80 Nm

• Controller: 48V, 500 W; torque-emulation PAS

• Sensor: Torque-emulating PAS + throttle

• Battery: 48V 15Ah (primary, UL-certified); optional 48V 17.5Ah (UL-certified)

• Brakes: Tektro hydraulic disc, 180 mm rotors, ceramic pads, motor cut-off

• Drivetrain: 7-speed; 42T crank, 11–32T freewheel

• Fork: Suspension, 80 mm travel, adjustable/lockout

• Tires/Wheels: 20" × 3.0" fat tires

• Cockpit: Foldable telescopic handlebar

• Racks: Rear cargo basket + front rack included

• Lighting: LED headlight, taillight with brake-light

• Wiring: Water-resistant
