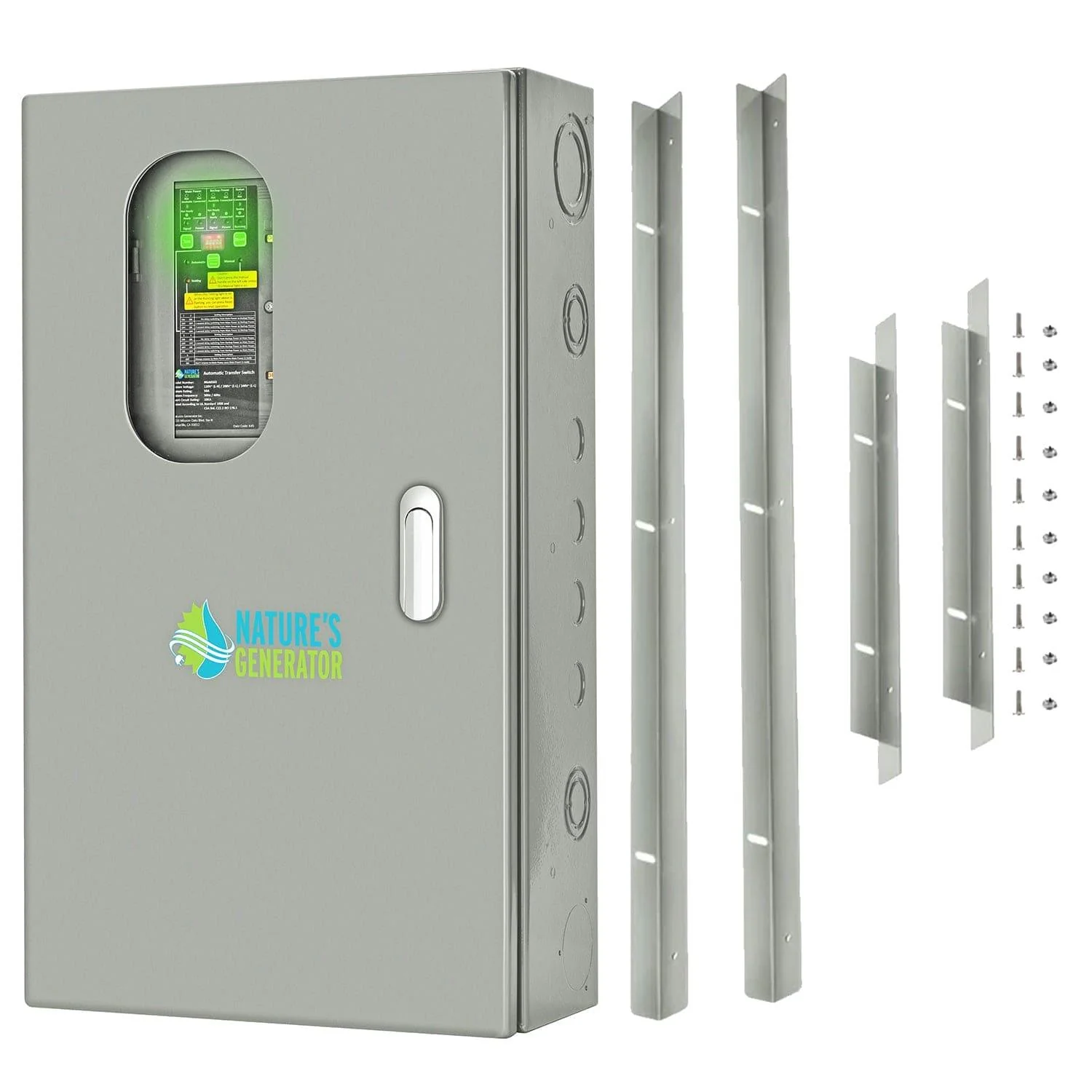

Nature’s Generator 50A Automatic Generator Transfer Switch

Seamless, Safe & Intelligent Backup Power Management

⚡🏠 Automatic Power Switching You Can Trust

The Nature’s Generator 50A Automatic Transfer Switch (ATS) is engineered to deliver safe, reliable, and hands-free power switching for whole-home and backup energy systems. When a power outage occurs, this ATS automatically transfers selected circuits from utility power to your backup source—no manual action required.

Built for high-capacity performance, broad system compatibility, and strict safety compliance, this transfer switch is ideal for solar generators, battery backup systems, grid-tie inverters, and traditional generators.

---

🔑 Key Features & Benefits

🔁 Automatic Power Transfer – Instantly switches to backup power during outages
⚡ 50A High-Capacity Support – Handles demanding residential and light commercial loads
🏡 Up to 24 Circuits – Supports 12 spaces, expandable to 24 circuits with tandem breakers
🔌 Wide Voltage Compatibility – Works with 120V, 120/240V & 120/208V systems
🛡️ Certified for Safety – UL 1008, UL 508A & CAN/CSA compliant
🧠 Centralized Control Console – Easy monitoring, testing & power source management
✋ Manual Override Included – Safely switch power sources when needed
🌧️ NEMA 3R Enclosure – Rated for indoor or outdoor installation

---

🏡 Built for Whole-Home Backup

✔️ Solar Generators & Battery Storage Systems
✔️ Gas & Hybrid Generators
✔️ Grid-Tie & Off-Grid Power Systems
✔️ Residential & Light Commercial Installations

Designed for scalable power, this ATS grows with your energy needs while keeping your electrical system organized and protected.

---

🔧 Technical Specifications

Electrical Ratings

• Power Rating: 50 Amps

• System Voltage:

  • 120V (L-N)

  • 208V (L-L)

  • 240V (L-L)

• Breaker Compatibility: AFCI & GFCI

Circuit Capacity

• Spaces: 12

• Circuits: Expandable to 24 (with tandem breakers)

Dimensions & Weight

• Size: 630 × 360 × 160 mm
  (24 3/4" × 14 1/4" × 6 1/2")

• Weight: 54 lbs (24.5 kg)

---

🛡️ Certifications & Compliance

✅ UL 1008
✅ UL 508A
✅ CAN/CSA C22.2 No. 178.1
✅ Designed to meet ISO/IEC Guide 17067 compliance standards

---

📦 What’s Included

✔️ Pre-Wired 50A Automatic Transfer Switch
✔️ Manual Override Handle
✔️ 50A Power Inlet Box
✔️ 50A Power Cord
✔️ User Manual

---

⚠️ Important Installation Notice

⚠️ Professional Installation Required
This product must be installed by a licensed electrician to comply with local electrical codes and safety regulations.

⚠️ Designed for residential and approved light-commercial use
⚠️ Always verify circuit load requirements before installation

---

❓ FAQs

How does the Automatic Transfer Switch work?
It automatically detects a utility power outage and transfers selected circuits to your backup power source.

Can I switch power sources manually?
Yes. A manual override handle is included for added flexibility and safety.

Does it support 120V and 240V systems?
Yes. It supports 120V, 120/240V, and 120/208V configurations.

Is this compatible with battery backup systems?
Yes. It is designed for solar generators, ESS systems, and hybrid setups.

---
